ZXSC380

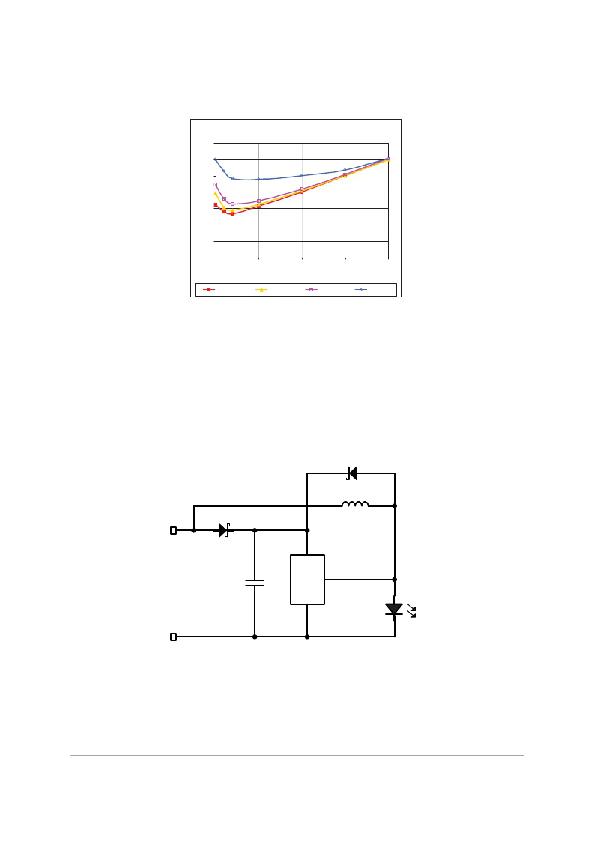

Frequency vs Supply Voltage
for L= 22, 47, 68 & 100uH
350
300
250
200
150
100
50
0
1
1.5
2
2.5
3
Supply Voltage Vcc (V)
L = 100uH
L = 68uH
L = 47uH
L = 22uH
Figure 4 Switching frequency vs the supply voltage for various inductor values
Bootstrap operation
The ZXSC380 can be operated in bootstrap mode, as shown in Figure 5, to operate down to 0.7V
typical after the initial successful start up. The operation down to 0.7V typical allows further cell
energy to be extracted beyond typically quoted end of battery voltage of approx. 0.9. This
prolongs the battery use time. (Note: Some batteries may have low voltage protections and may
switch the supply off.) The schotkky diodes, D1 and D2, should have a very low forward voltage,
e.g. of such part is Zetex ZHCS400 (SOD323 package) or Zetex BAT54C (dual schotkky diode with
common Cathode). The start up voltage is 0.9V typical without bootstrap, however, due to the
additional schotkky, D1, being in the path of the supply to the Vcc pin, the start up voltage can be
1.1V typical for the bootstrap configuration.
D2
L1
V IN
D1
C1
1uF
100uH
1
V CC
V OUT 2
ZXSC380
GND
GND
3
Figure 5 ZXSC380 in bootstrap mode
LED1
Issue 3 - September 2007
? Zetex Semiconductors plc 2007
7
www.zetex.com
